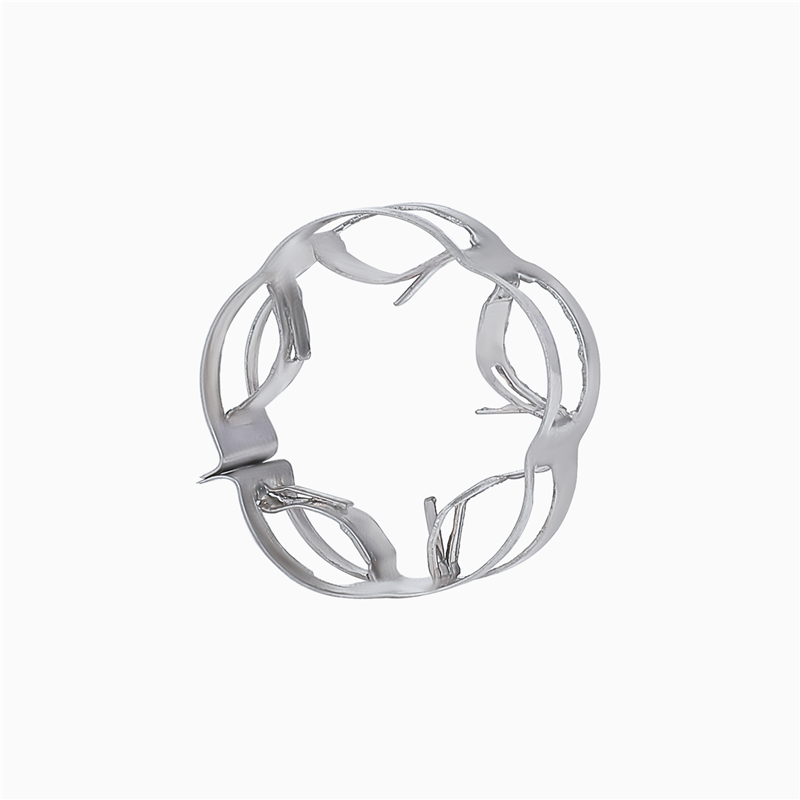

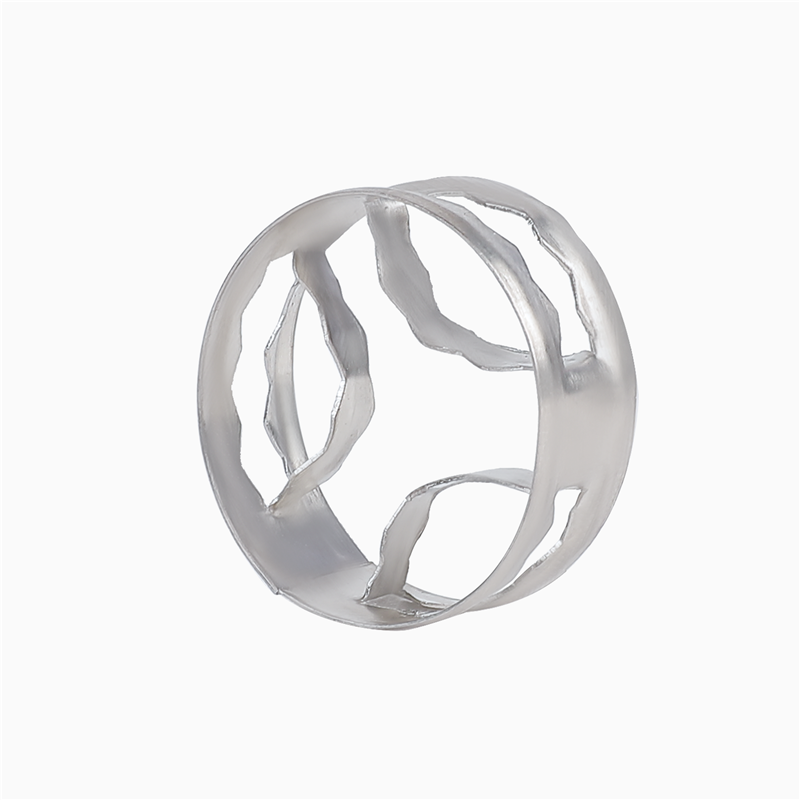

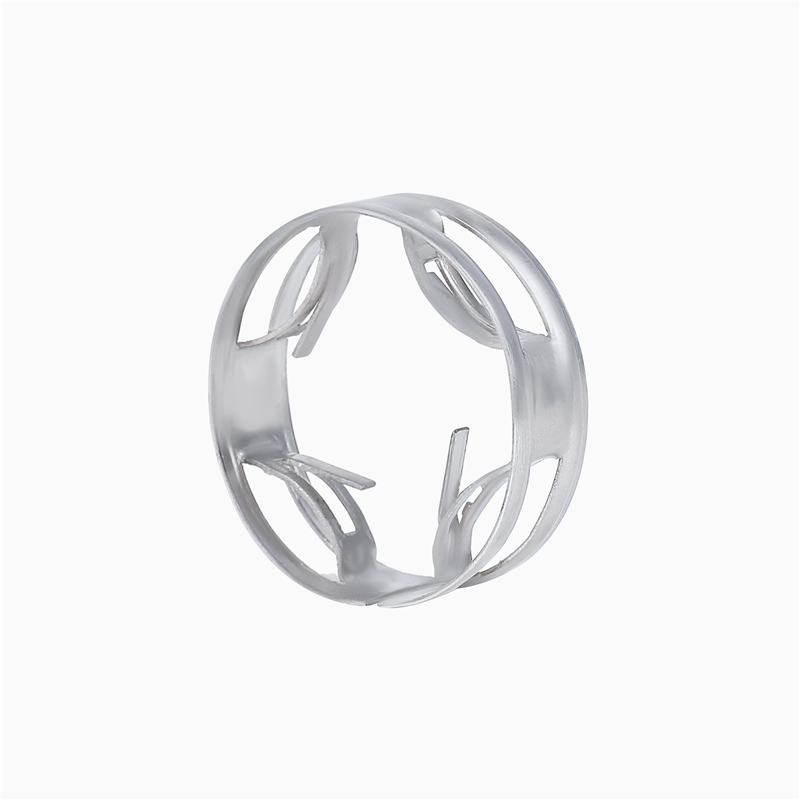

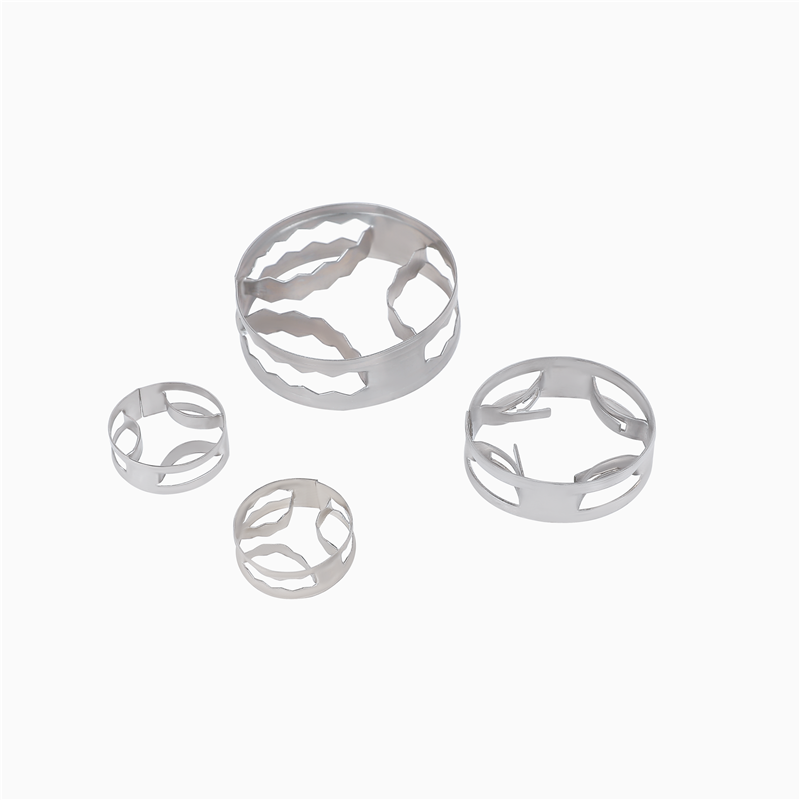

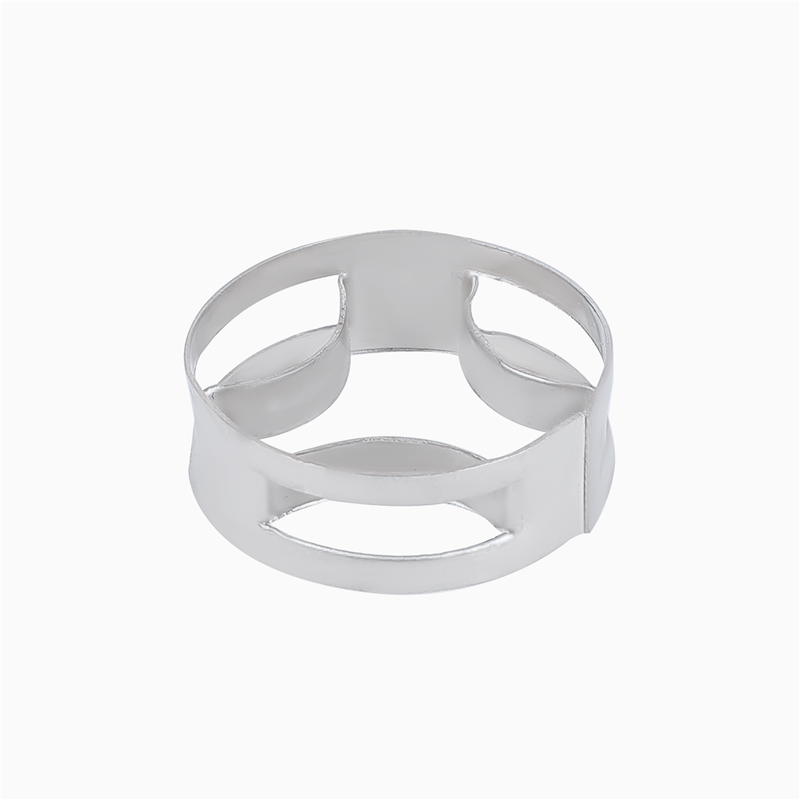

SUPER MINI RING PACKING
The structure of Super Mini Ring is symmetrical uniform which can arrange orderly in the random packing with reasonable flow channel structure. This packing can effectively reduce axial mixing in the packing layer. The processing capacity and mass transfer performance were improved which is obviously superior to the Pall Ring and Saddle Ring Packing.Materials and Options
Available in a wide range of materials such as stainless steel 304, 304L, 316, 316L, carbon steel , aluminum and other alloy etc.
Advantage
1.Large flux
2.Low pressure drop
3.Mass transfer efficiency
4.Operating flexibility
Applications and Industries
Metal super mini ring (or named Flat ring) random tower packing, is especially suitable for relative flow movement of liquid-liquid phase, an lessens agglomeration of dispersed droplet cluster.
Specifications
|
Size HY-1 |
Diameter （mm） |
Number （m-3） |
Surface Area（m²/m³） |
Void Rate（m³/m³） |
Packing Weight (kg/m³) |
|
16 |
16x5.5x0.6 |
378000 |
348 |
0.923 |
492 |
|
25 |
25x9.0x0.6 |
155000 |
228 |
0.936 |
516 |
|
38 |
38x12.7x0.8 |
48000 |
150 |
0.95 |
400 |
|
50 |
50x17x0.8 |
21500 |
120 |
0.965 |
360 |
|
|
|
|
|
|
|
|
Size HY-2 |
Diameter （mm） |
Number （m-3） |
Surface Area（m²/m³） |
Void Rate（m³/m³） |
Packing Weight (kg/m³) |
|
16 |
16x5.5x0.3 |
406000 |
312 |
95.7 |
339 |
|
25 |
25x9.0x0.4 |
166000 |
256 |
95.4 |
351 |
|
38 |
38x12.7x0.6 |
52000 |
170 |
95.2 |
344 |
|
50 |
50x17x0.8 |
23000 |
125 |
95.6 |
389 |
|
|
|
|
|
|
|
|
Size HY-3 |
Diameter （mm） |
Number （m-3） |
Surface Area（m²/m³） |
Void Rate（m³/m³） |
Packing Weight (kg/m³) |
|
16 |
16x5.5x0.3 |
378000 |
348 |
0.934 |
246 |
|
25 |
25x9.0x0.4 |
155000 |
228 |
0.955 |
344 |
|
38 |
38x12.7x0.6 |
48000 |
150 |
0.963 |
342 |
|
50 |
50x17x0.7 |
21500 |
120 |
0.972 |
315 |
|
75 |
75x25x0.9 |
5800 |
70 |
0.985 |
243 |
