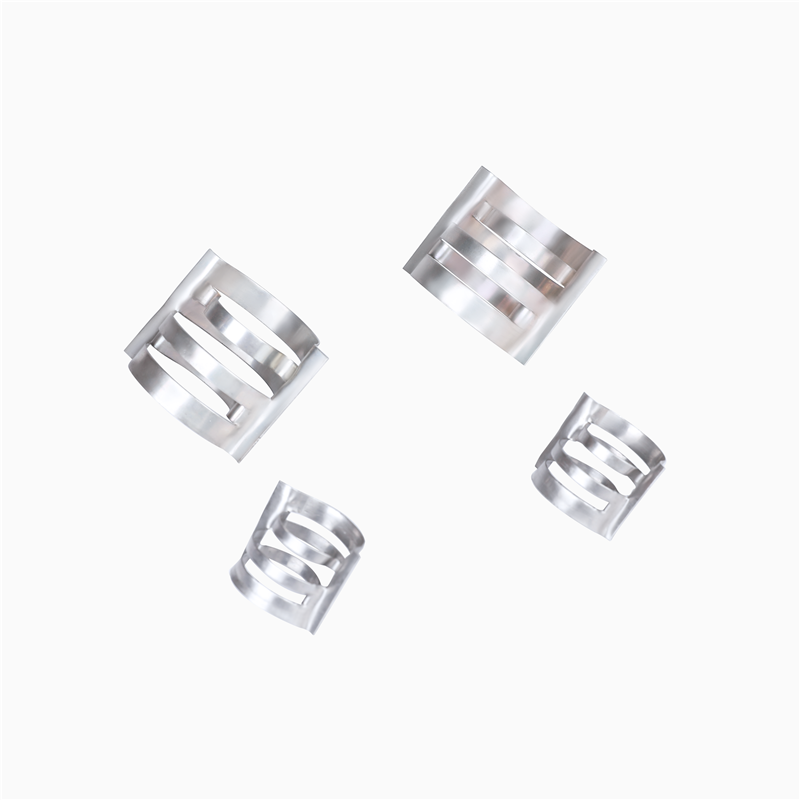

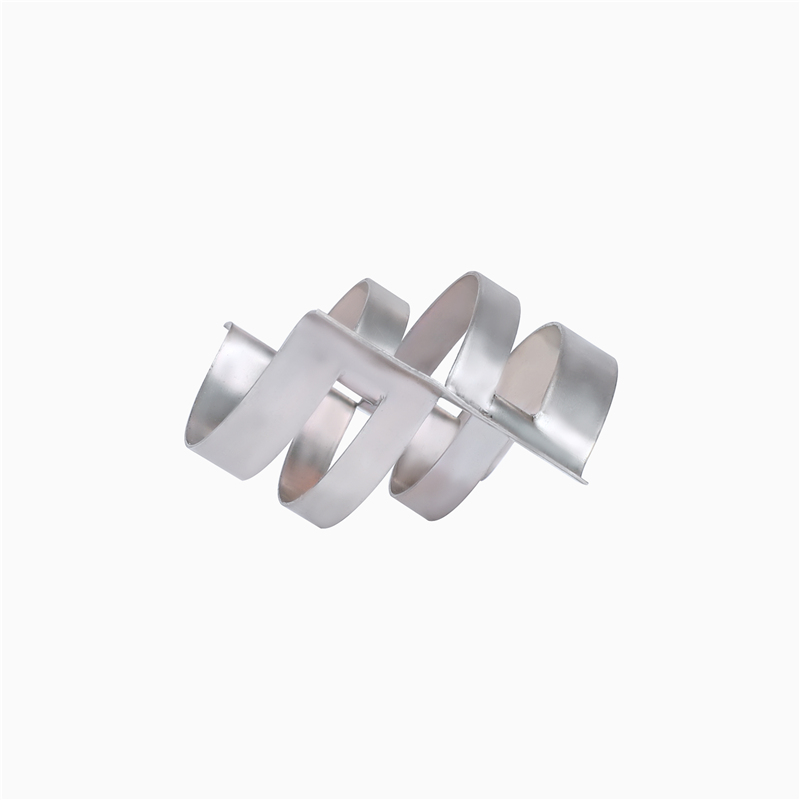

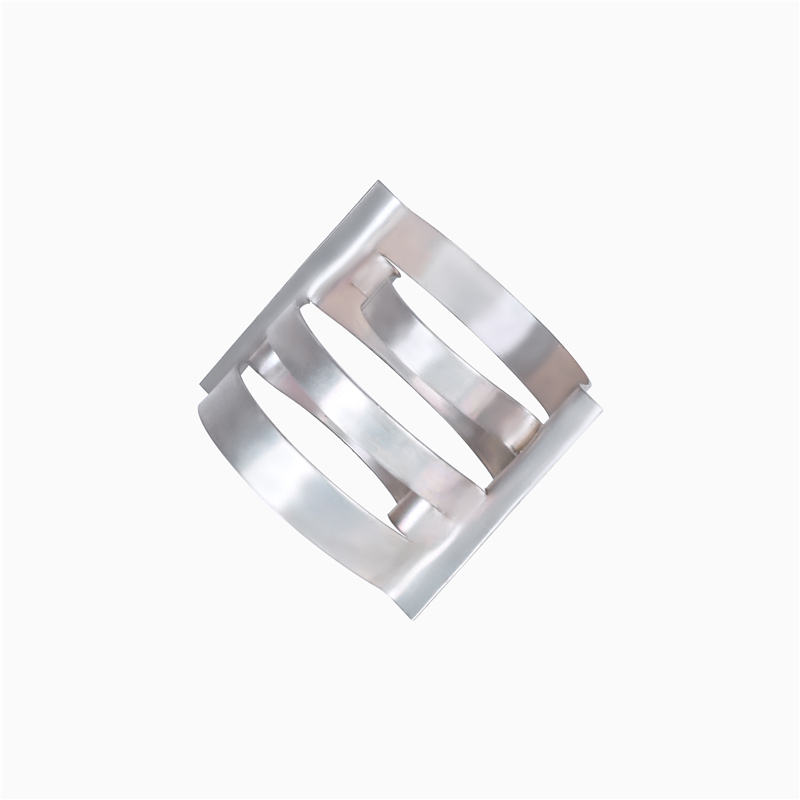

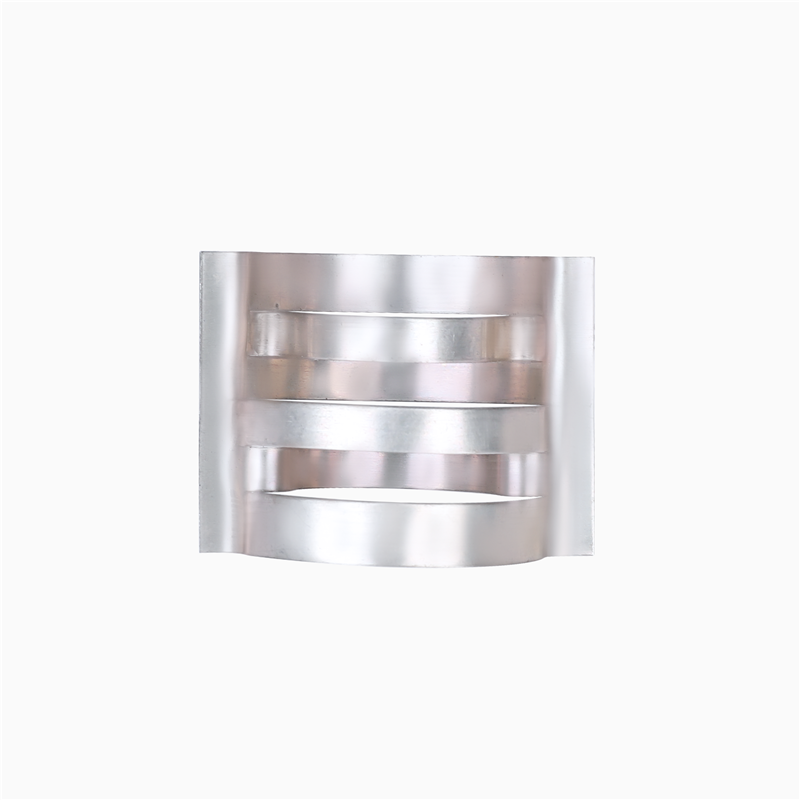

METAL CONJUGATE RING

METAL CONJUGATE RING

Metal conjugate rings are innovative and high-performance packing materials used in various industrial applications, especially in the field of process engineering. These rings are designed to improve mass and heat transfer efficiency in columns and vessels.
The metal conjugate ring design consists of multiple curved metal sheets that are tightly stacked in a way that forms a three-dimensional structure. This unique structure provides a large surface area for contact between the gas and liquid phases, resulting in enhanced mixing and improved separation efficiency.
Contact now

PRODUCT DESCRIPTION

METAL CONJUGATE RING

Metal conjugated ring is a kind of filling material with metal as raw material, which is one of the most advanced and effective types of metal filling materials.  Metal conjugated ring is a new type of ring and saddle shaped packing which makes up for its shortcomings.  Compared with the metal rectangular saddle ring, it has higher efficiency and stronger characteristics.

Materials and Options

Available in a wide range of materials such as stainless steel 304, 304L, 316, 316L, carbon steel , aluminum and other alloy etc.

Advantage

1.Low pressure drop

2.High flux, excellent quality and high efficiency

3.Higher Hydrodynamics mass transfer performance

Applications and Industries

This packing widely used in packed tower of alkali-chloride industry, petroleum industry, coal gas industry, chemical industry and environment industry industry, etc.

Specifications

Size

Diameter（mm）

Surface Area   （m²/m³）

Diameter（mm）

Weight（kg/m³）

Number（m³）

Factor (m-1 )

Φ16

16x0.4

313

0.97

354

211250

340

Φ25

25x0.6

185

0.95

216

75000

312

Φ38

38x0.8

116

0.96

131

19500

296

Φ50

50x0.8

86

0.96

97

9772

268

Φ76

76x0.8

81

0.95

94.5

3980

247

Product Introducing

The METAL CONJUGATE RING is a high-performance packing material designed to enhance mass transfer and heat exchange processes in various industrial applications. With a range of sizes and exceptional parameters, this product offers superior performance and reliability.
Exceptional surface area for effective mass transfer.
Lightweight yet durable construction with low weight per unit volume.
Available in various sizes to suit different applications.
High factor (m-1) for improved efficiency.
Designed for optimal performance in industrial processes.
Applications:
Petrochemical industry: Distillation and absorption processes.
Chemical manufacturing: Solvent recovery, chemical reactions.
Environmental protection: Air and water treatment.
Food and beverage industry: Liquid extraction and separation.
Pharmaceutical industry: Purification and separation processes.
The METAL CONJUGATE RING is your reliable choice for efficient and cost-effective mass transfer and heat exchange. With its exceptional parameters and versatility, it plays a vital role in enhancing the performance of various industrial processes. Upgrade your operations with METAL CONJUGATE RING today!
