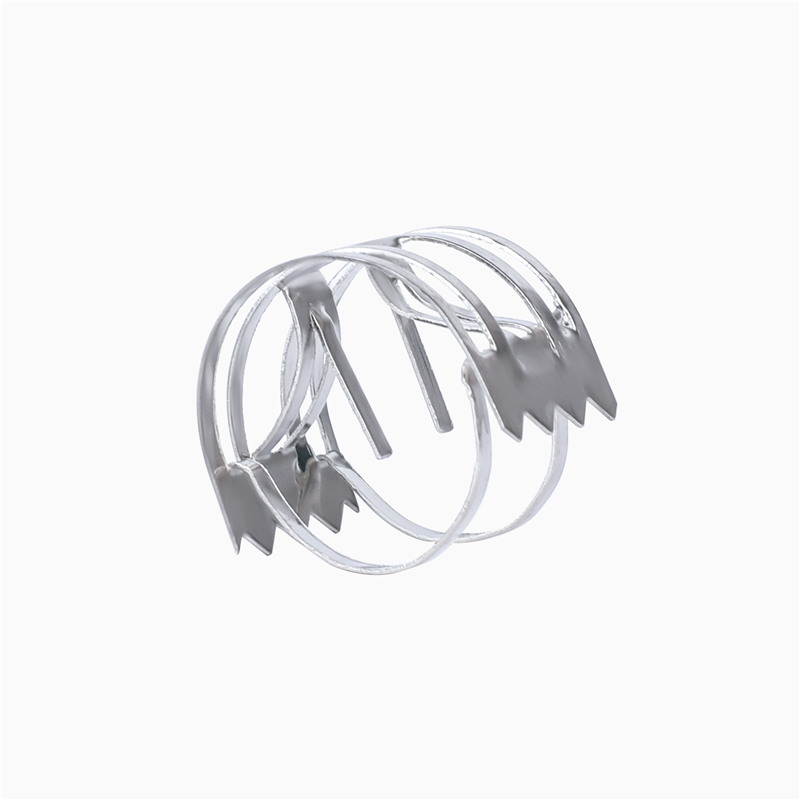

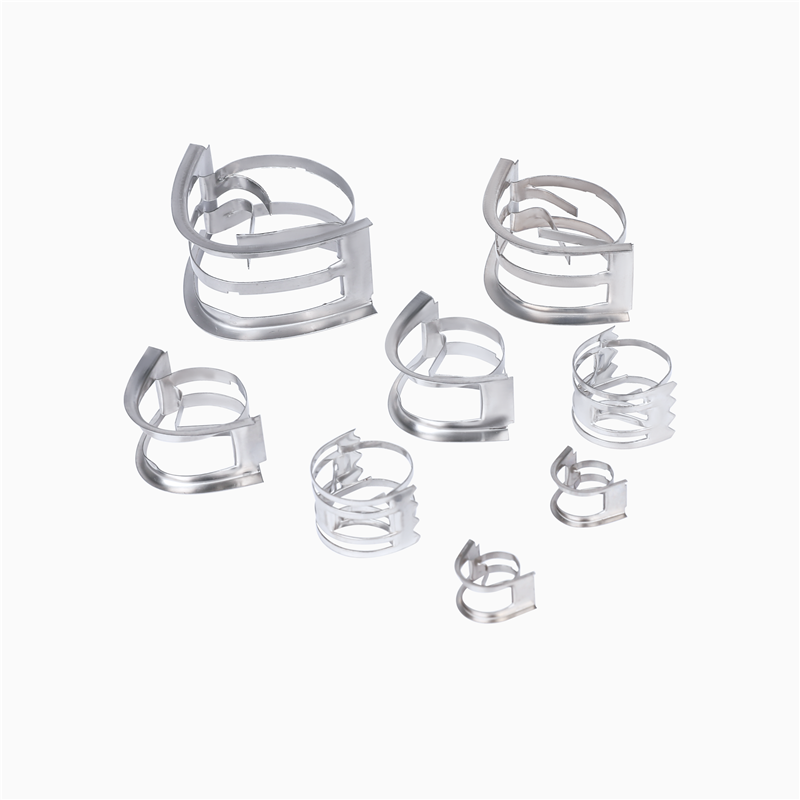

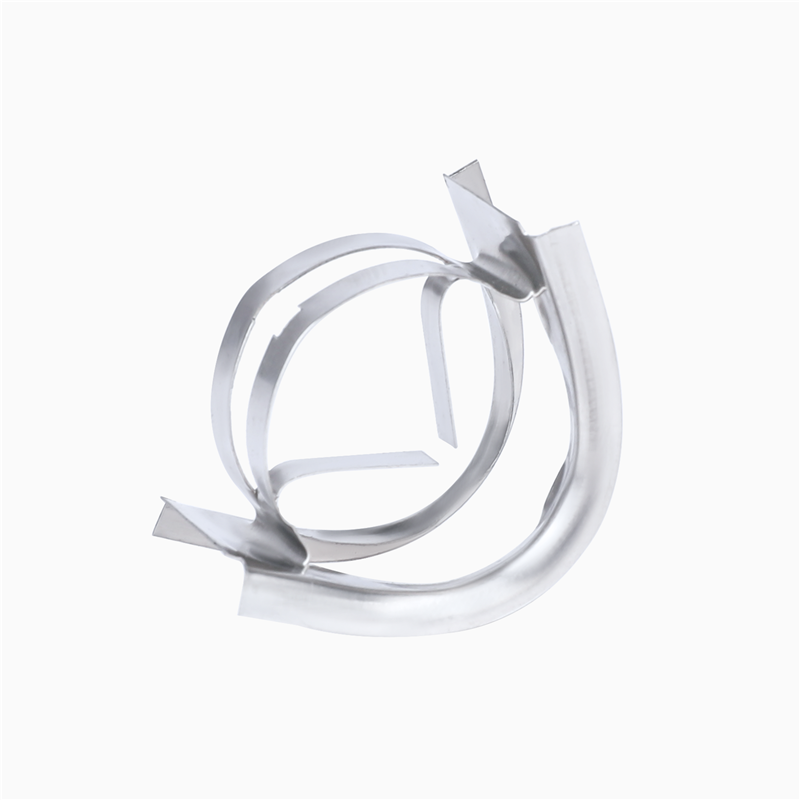

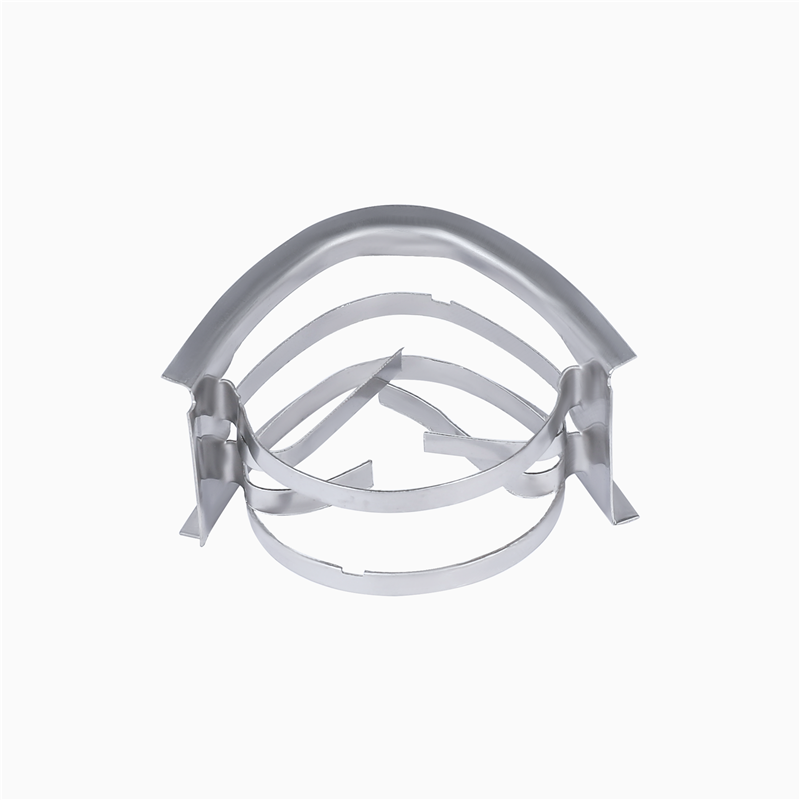

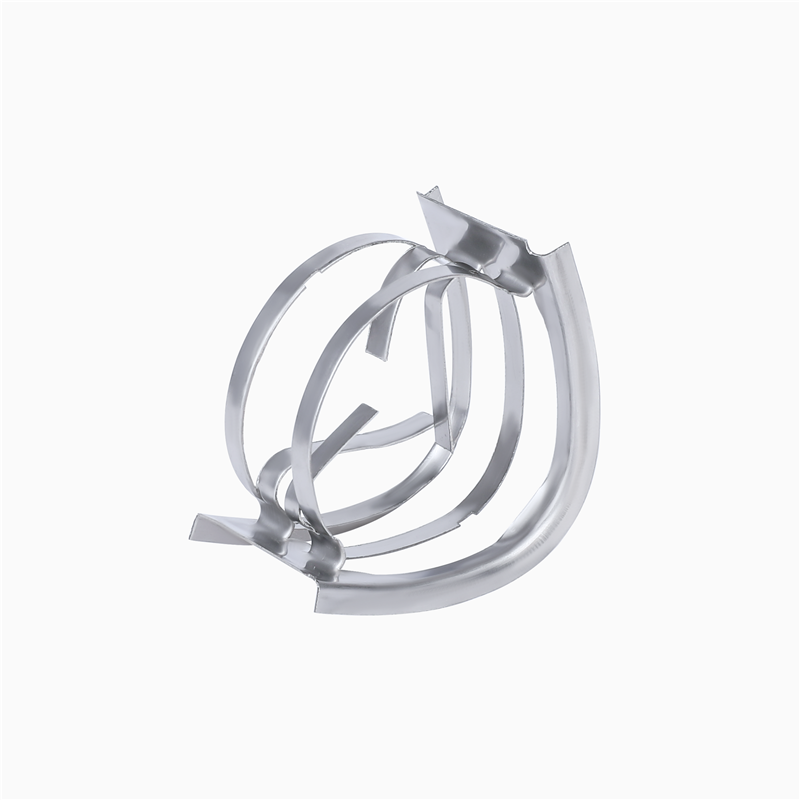

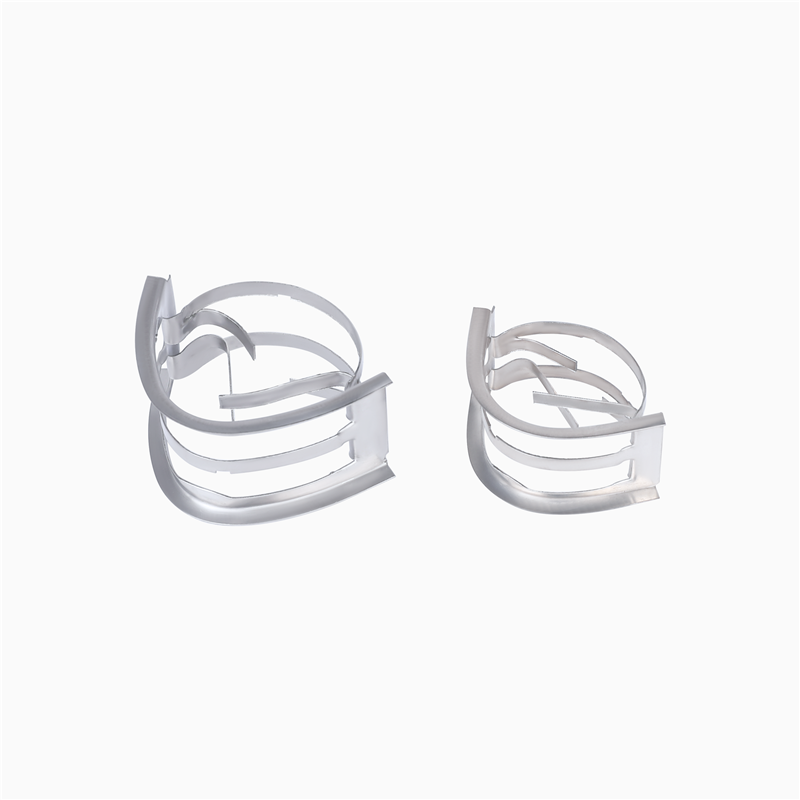

METAL SADDLE PACKING
Metal saddle rings gives the best of both the worlds in terms of performance (i.e. low-pressure drop and high efficiency). It can be effectively used in both high pressure and vacuum towers.Its monolithic construction overcomes the problem of "opening out" at the ends as can be experienced with ring shaped packings.
Materials and Options
Available in a wide range of materials such as stainless steel 304, 304L, 316, 316L, carbon steel , aluminum and other alloy etc.
Advantage
- A versatile packing used in distillation, absorption and other operations.
- Used in both deep vacuum and high pressure towers.
- Metal saddle is high performance random packing successfully used in mass transfer towers both small and large diameter. It is frequently used in deep vacuum towers where low pressure drop is crucial and also high pressure towers where capacity significantly exceeds conventional trays.
Applications and Industries
It is widely used in distillation, gas absorption, regeneration and desorption system.
Specifications
|
Size |
Diameter*Height*Thickness（mm） |
Number（1/m³） |
Weight (kg/m³) |
Surface area（m²/m³） |
Void space（%） |
Packing factor (1/m) |
|
16# |
16x10x0.3 |
347500 |
240 |
291.3 |
95.6 |
253 |
|
25# |
25x20x0.4 |
101160 |
119 |
225.8 |
96 |
209.1 |
|
38# |
38x24x0.5 |
24680 |
249.6 |
150.8 |
96.8 |
126.6 |
|
50# |
50x28x0.8 |
10400 |
291 |
100 |
97 |
84.7 |
|
76# |
76x48x1.0 |
3320 |
244.7 |
60 |
97 |
63.1 |
