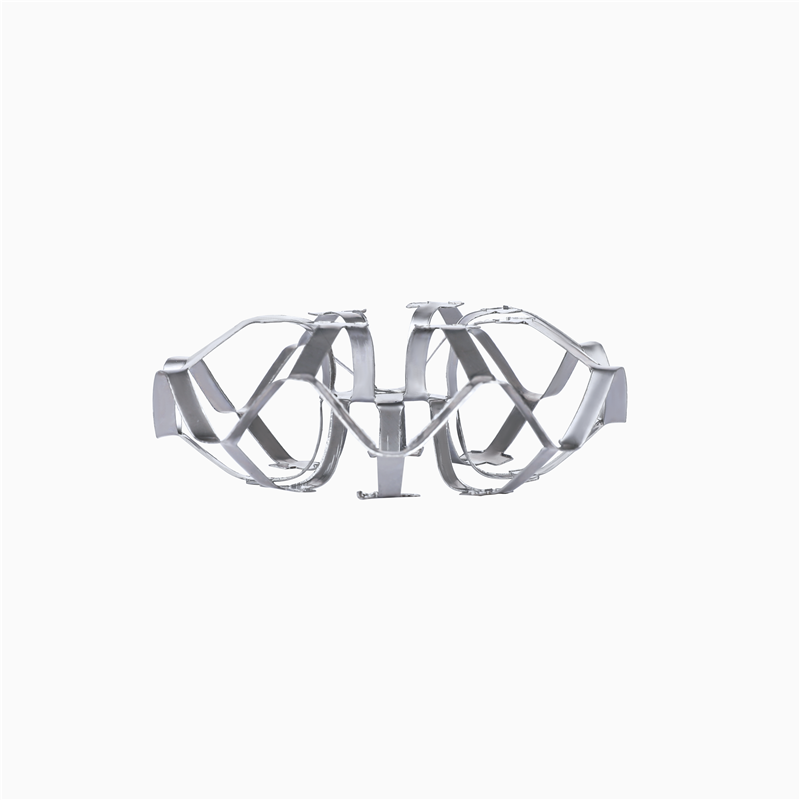

METAL TELLER ROSETTE RING

METAL TELLER ROSETTE RING

A Metal Tellerette Ring (sometimes spelled "Metal Tellerette" or "Metal Teller Ring") is a type of structured packing used in various chemical and industrial processes, particularly in distillation and absorption columns. These rings are commonly used in applications where the separation, absorption, or stripping of gases and liquids is essential, such as in the chemical, petrochemical, and environmental industries. The use of structured packing like Metal Tellerette Rings helps improve the efficiency of these processes by maximizing the contact area and reducing pressure drop.
Contact now

PRODUCT DESCRIPTION

METAL TELLERETTE RING

The packing liked ellipse is consist of many enlaced cirques. For high liquid load in lacuna of packing, so prolong time of gas-liquid contact, enhance the efficiency to transfer.


Materials and Options

Available in a wide range of materials such as stainless steel 304, 304L, 316, 316L, carbon steel , aluminum and other alloy etc.


Advantage

  1. 1.Low pressure drop and high efficiency
  2. Large effective interfacial area
  3. Good resistance



Applications and Industries

Based on these characteristics of big void age, low pressure drop, the sufficiency gas-liquid contact, low weight, high efficiency of transfer, it is widely available in the washing, refining tower.


Specifications

Diameter（mm）

Specific area（m2/m3）

Voide rate
（%）

Bulk number（Pieces/m2）

50*25*0.8

112.8

96.2

19180

75*75*1.0

64.1

97.3

5460

100*45*1.2

53.4

97.3

2520











Product Introducing

The Metal Tellerette Ring you described has different specifications with varying sizes and parameters. Here's a breakdown of each size and its corresponding characteristics:
Diameter 50 x 25 x 0.8 (mm):
Specific Area: 112.8 m²/m³
Void Rate: 96.2%
Bulk Number: 19,180 pieces/m²
Diameter 75 x 75 x 1.0 (mm):
Specific Area: 64.1 m²/m³
Void Rate: 97.3%
Bulk Number: 5,460 pieces/m²
Diameter 100 x 45 x 1.2 (mm):
Specific Area: 53.4 m²/m³
Void Rate: 97.3%
Bulk Number: 2,520 pieces/m²
These parameters provide important information about the Metal Tellerette Rings:
Diameter: This specifies the size of the rings, with each dimension indicating the inner diameter, outer diameter, and height (or thickness) of the ring. For example, in the first size, the ring has an inner diameter of 50 mm, an outer diameter of 25 mm, and a thickness of 0.8 mm.
Specific Area (m²/m³): This parameter represents the surface area of the ring per unit volume. It's a measure of the available surface for contact between gas and liquid. The larger the specific area, the more efficient the mass transfer and separation processes.
Void Rate (%): This indicates the percentage of open space or voids within the packing. Higher void rates generally lead to better gas and liquid flow and improved mass transfer efficiency.
Bulk Number (Pieces/m²): This specifies the number of individual Metal Tellerette Rings that can be packed into one square meter. It's an important parameter for determining the quantity of rings needed for a particular application.
These parameters are crucial for selecting the appropriate packing for specific industrial processes, as they affect the efficiency and performance of distillation, absorption, or other separation processes. The choice of size and configuration depends on the requirements of the application and the desired outcome.

Zhejiang Weijia
Special Steel Co., Ltd.
is founded in 2005

Zhejiang Weijia Special Steel Co., Ltd is a China Metal Teller Rosette Ring Manufacturers and custom Metal Teller Rosette Ring Suppliers, It has advanced domestic production equipment and technical force. Our company is located in the scenic Hangzhou Bay, Jiaxing Economic Development Zone. Haiyan Weijia Special Steel Co., Ltd. specializes in producing all kinds of wholesale METAL TELLER ROSETTE RING. The materials are 304, 302, 301, 321, 316L, 430, 410, 201, 202 and other cold-rolled strips. It can also produce cold-rolled stainless steel strips with various special materials, tensile strength and hardness according to user's requirements. Our company has passed QMS ISO 9001:2000 quality management system certification, and the quality has reached the advanced level of domestic counterparts.
